High Breaking Capacity MCB Circuit Breaker For Lighting Distribution System

Name: High Breaking Capacity MCB Circuit Breaker For Lighting Distribution System
Brand: TYNEHAM
Price: 1 USD

Brand Name : TYNEHAM

Model Number : DZ47-63

Place of Origin : WENZHOU, CHINA

MOQ : 2000 PCS

Price : Negotiate

Supply Ability : 200000 PCS / Month

Packaging Details : Standard Export Packing

Name : MCB Circuit Breaker

Pole : 3 P

Rated current (A) : 6, 10, 16, 20, 25, 32, 40, 50, 63

Rated voltage (V) : 230

Material of case : Plastic

Operation Mode : Electric Type

Contact Now

DZ47 - 63 Miniature Circuit Breakers / Low Voltage Micro Circuit Breaker 3P

Application

Dz47-63 series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. MCB Circuit Breaker is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-rsistant and shockproof plastics. MCB Circuit Breaker , with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply wih IEC 60898.

Specification

Type	DZ47-63 MCB Circuit Breaker
Pole	1P			2P, 3P, 4P
Rated current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage (V)	230			400
Ambient temperature	-5 o C~+40 o C
Type of instantaneous release	C	D	C	D
Rated short circuit breaking capacity Icn(kA)	1-32A: 6 50-63A: 4	4	1-32A: 6 50-63A: 4	4

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	Note
30±2 o C	Cold position	1.13In	t≥1h	Non-release	-
	Carried out immediatelyafter previous test	1.45In	t < 1h	Release	-
	Cold position	2.55In	1s < t< 60s(In≥32A)	Release	Current smoothly rises tospecified value within 5s
	Cold position	2.55In	1s < t < 120s(In>32A)	Release	Current smoothly rises tospecified value within 5s
-5~+40 o C	Cold position	3In	t≥0.1s	Non-release	Type B
	Cold position	5In	t < 0.1s	Release	Type B
	Cold position	5In	t≥0.1s	Non-release	Type C
	Cold position	10In	t < 0.1s	Release	Type C
	Cold position	10In	t≥0.1s	Non-release	Type D
	Cold position	20In	t < 0.1s	Release	Type D

Rated current(A)	Norminal cross section of wire mm 2
1-6A	1
10A	1.5
16,20A	2.5
25A	4
32A	6
40,50A	10
63A	16

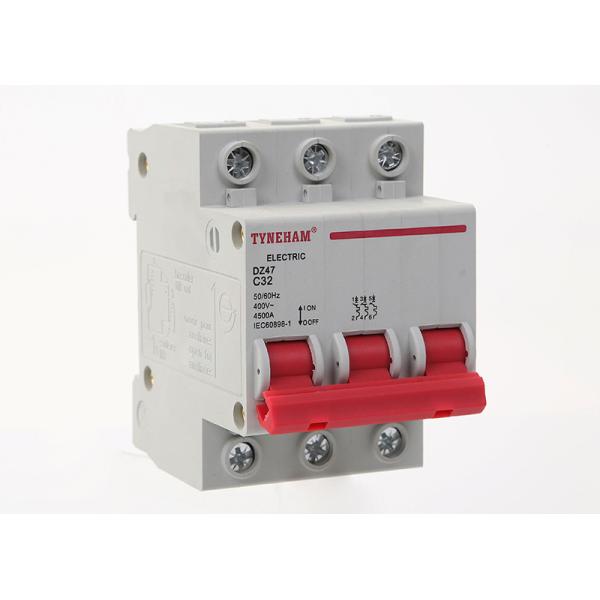

Appearance

High Breaking Capacity MCB Circuit Breaker For Lighting Distribution System

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
