Long Life MCB Circuit Breaker With Hight Breaking Capacity GB10963 Standard

Name: Long Life MCB Circuit Breaker With Hight Breaking Capacity GB10963 Standard
Brand: TYNEHAM
Price: 1 USD

Wholesale Long Life MCB Circuit Breaker With Hight Breaking Capacity GB10963 Standard from china suppliers

Brand Name : TYNEHAM

Model Number : DZ47-63

Place of Origin : WENZHOU, CHINA

MOQ : 2000 PCS

Price : Negotiate

Supply Ability : 200000 PCS / Month

Packaging Details : Standard Export Packing

Type of Breaker : Low voltage mini circuit breaker

Pole : 2 Pole

Rated current (A) : 6, 10, 16, 20, 25, 32, 40, 50, 63

Rated voltage (V) : 230

Material of case : Plastic

Operation Mode : Electric Type

Contact Now

DZ47 High Breaking Capacity MCB Circuit Breaker Mini Circuit Breaker

Application

Dz47-63 series circuit breaker is used in lighting distribution ststem or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. MCB Circuit Breaker hight breaking capacity, can trip quickly and its installation uses with guide. Its case and items are adopted with high fire-resistant and shockproof plastics. MCB Circuit Breaker with long life, is mainly used in AC 50Hz/60Hz single pole 240V or tow,three, four poles 415V circuit for overload and short-circuit protection as well as for in frequent on-and-off switching electric equipment and lighting circuit in normal case. This product comply with GB10963, IEC898.

Specification

Type	DZ47-63 MCB Circuit Breaker
Pole	1P			2P, 3P, 4P
Rated current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage (V)	230			400
Ambient temperature	-5 o C~+40 o C
Type of instantaneous release	C	D	C	D
Rated short circuit breaking capacity Icn(kA)	1-32A: 6 50-63A: 4	4	1-32A: 6 50-63A: 4	4

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	Note
30±2 o C	Cold position	1.13In	t≥1h	Non-release	-
	Carried out immediatelyafter previous test	1.45In	t < 1h	Release	-
	Cold position	2.55In	1s < t< 60s(In≥32A)	Release	Current smoothly rises tospecified value within 5s
	Cold position	2.55In	1s < t < 120s(In>32A)	Release	Current smoothly rises tospecified value within 5s
-5~+40 o C	Cold position	3In	t≥0.1s	Non-release	Type B
	Cold position	5In	t < 0.1s	Release	Type B
	Cold position	5In	t≥0.1s	Non-release	Type C
	Cold position	10In	t < 0.1s	Release	Type C
	Cold position	10In	t≥0.1s	Non-release	Type D
	Cold position	20In	t < 0.1s	Release	Type D

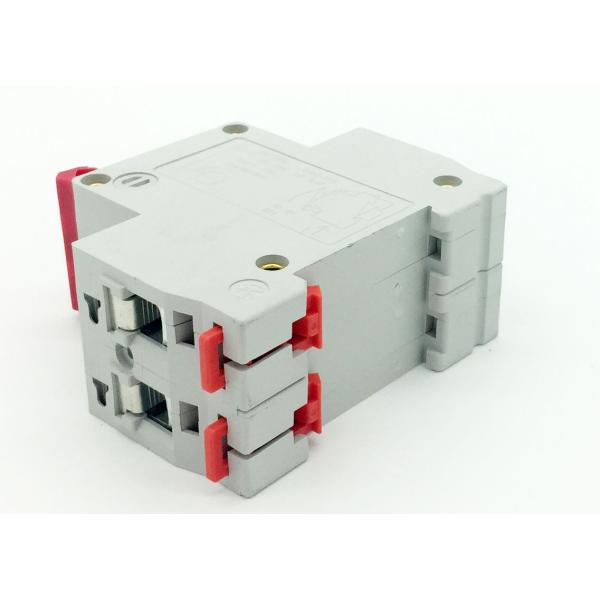

Appearance

Long Life MCB Circuit Breaker With Hight Breaking Capacity GB10963 Standard

Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.

Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
