Plastic Electromechanical Induction Meter / High Accuracy Mechanical Energy Meter

Name: Plastic Electromechanical Induction Meter High Accuracy Mechanical Energy Meter
Brand: TYNEHAM
Price: 1 USD

Brand Name : TYNEHAM

Model Number : DD862

Place of Origin : WENZHOU, CHINA

MOQ : 200 Pcs

Price : Negotiable

Packaging Details : 20PCS/CTN Foam box inside, carton outside

Supply Ability : 100000 Pcs Per Month

Name : Electromechanical Induction Meter

Material of Base : Metal

Material of Terminal : Copper

Color of Cover : Black

Working Peinciple : Mechanical

Material of Screws : Iron

Contact Now

DD 862 Single Phase Electromechanical KWH Meter Black Cover Single Phase Two Wire

PRODUCT INFORMATION

DD862 series Single Phase Active Electromechanical Induction Meter is designed to measure active energy with functions of dual direction metering,reversion rotation,pulse output,carrier communication,etc.

SPECIFICATIONS

Applicable Standard	IEC 62053-11 and IEC 62053-11
Accuracy	Class 2.0
Voltage	AC 220V-240V
Current	1.5(6)A,2.5(10)A,3(12)A,5(20)A,10(40)A,20(80)A,30(100)A ETC.
Frequency	50Hz or 60Hz
Display	Register 4 integer plus 1 decimal 20(80)A,30(100)A : 5 integer

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.

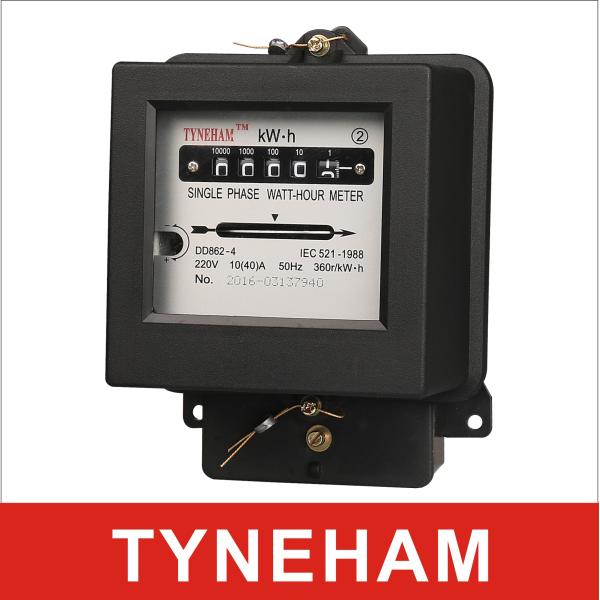

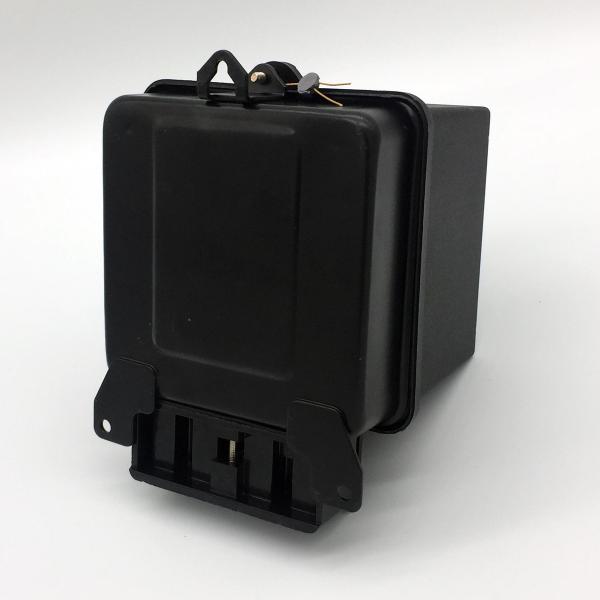

PRODUCT PICTURE

DIMENSIONS

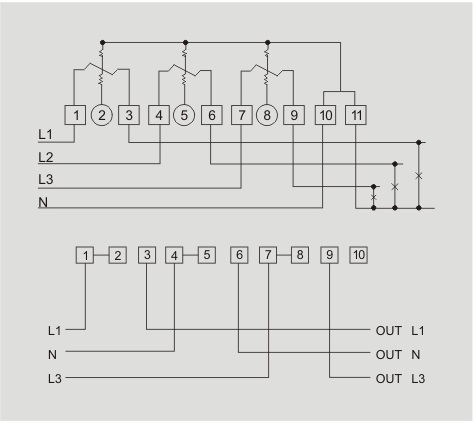

WIRING DIAGRAM

PACKING

Plastic Electromechanical Induction Meter / High Accuracy Mechanical Energy Meter

Product Tags:

electromechanical induction meter

mechanical electricity meter

Plastic Electromechanical Induction Meter / High Accuracy Mechanical Energy Meter Images
