Anti Tamper Din Mounted KWH Meter / Three Phase Four Wire Energy Meter Din Rail

Name: Anti Tamper Din Mounted KWH Meter Three Phase Four Wire Energy Meter Din Rail
Brand: TYNEHAM
Price: 1 USD

Wholesale Anti Tamper Din Mounted KWH Meter / Three Phase Four Wire Energy Meter Din Rail from china suppliers

Brand Name : TYNEHAM

Model Number : DTS - 4R

Place of Origin : WENZHOU, CHINA

MOQ : 200 Pcs

Price : Negotiate

Supply Ability : 50000 PCS Per Month

Packaging Details : Foam box inside, carton outside 20 Pcs / Carton

Material of Meter Body : Plastic

Type of Connect : DIN Rail Connect

Number of Phase : 7P

Display : Counter Type

Theory : Electronic Meter

Is it possible to OEM : YES

Contact Now

Tyneham DTS - 4R 3 Phase KWH Meter DIN Rail Rigister Type 7P

PRODUCT INFORMATION

DTS-4R Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active energy meter. It adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.

SPECIFICATIONS

Applicable Standard	IEC 62052-11 and IEC 62053-21
Accuracy	Class1/2
Voltage	3P4W: 3×220/380V 3P3W: 3×57.7/100V,3×380V,3×100V
Current	1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A ETC.
Frequency	50Hz or 60Hz
Display	Register 5 integer plus 1 decimal, 20(80)A,30(100)A 6 integer LCD 5 integer plus 1 decimal digital number

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.

DIMENSIONS

WIRING DIAGRAM

Anti Tamper Din Mounted KWH Meter / Three Phase Four Wire Energy Meter Din Rail

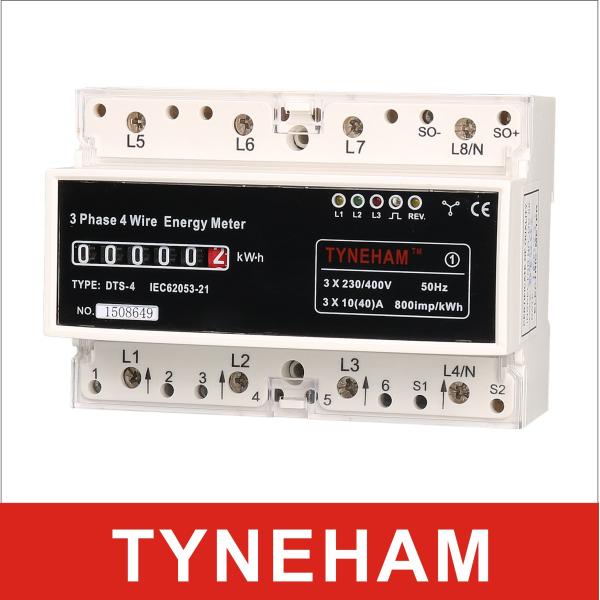

APPEARANCE

PACKING
