High Reliability Register Three Phase KWH Meter For Household Convenient Installation

Name: High Reliability Register Three Phase KWH Meter For Household Convenient Installation
Brand: TYNEHAM
Price: 1 USD

Wholesale High Reliability Register Three Phase KWH Meter For Household Convenient Installation from china suppliers

Brand Name : TYNEHAM

Model Number : DTS - 2L

Place of Origin : WENZHOU, CHINA

MOQ : 100 pcs

Price : Negotiate

Supply Ability : 30000 PCS Per Month

Packaging Details : Foam box inside, carton outside 20 Pcs / Carton

Name : Register Three Phase KWH Meter

Material of Base : Plastic

Colar of cover : Beige

Type of terminal cover : short type

Material of terminal : Copper

Type pf connect : Direct connect

Contact Now

DTS - 2L Three Phase KWH Meter LCD Type with Beige Cover Three Phase Four Wire

PRODUCT INFORMATION

DTS-2L Series three phase electronic four wire electronic energy meter is a kind of new style three phase four wire active energy meter. Register Three Phase KWH Meter adopt stable performance,low power consumption of industrial components, Register Three Phase KWH Meter use the process carefully design and manufacture.

SPECIFICATIONS

Applicable Standard	IEC 62052-11 and IEC 62053-21
Accuracy	Class1/2
Voltage	3P4W: 3×220/380V 3P3W: 3×57.7/100V,3×380V,3×100V
Current	1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A ETC.
Frequency	50Hz or 60Hz
Display	Register 5 integer plus 1 decimal, 20(80)A,30(100)A 6 integer LCD 5 integer plus 1 decimal digital number

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement.

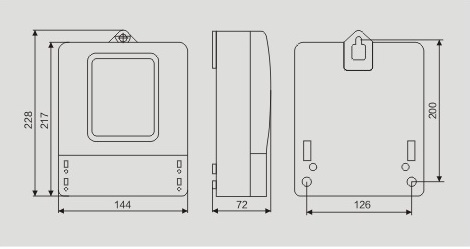

DIMENSIONS

WIRING DIAGRAM

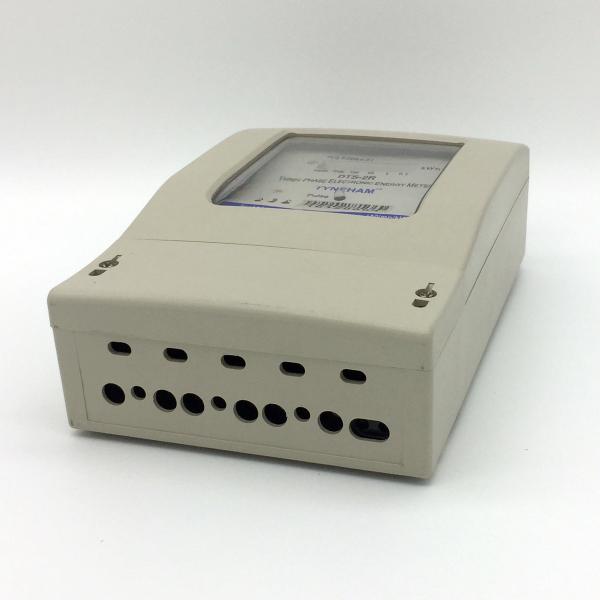

APPEARANCE

PACKING

Product Tags:

kwh meter 3 phase

3 phase 4 wire energy meter

High Reliability Register Three Phase KWH Meter For Household Convenient Installation Images
