Long Life Induction Energy Meter / Mechanical Kwh Meter Low Power Loss

Name: Long Life Induction Energy Meter Mechanical Kwh Meter Low Power Loss
Brand: TYNEHAM
Price: 1 USD

Brand Name : TYNEHAM

Model Number : DD862

Place of Origin : WENZHOU, CHINA

MOQ : 200 Pcs

Price : Negotiable

Supply Ability : 100000 Pcs Per Month

Packaging Details : 20 PCS/CTN Foam box inside, carton outside

Accuracy Class : class 2.0

Phase : Single Phase

Frequency : 50HZ OR 60HZ

Type : kwh meter to show consumtion

Output Voltage : 220v or 240v

Measuring Energy Range : 10-100A

Contact Now

Tyneham DD862Single Phase Two Wire Electromechanical KWH Meter Transparent Cover

PRODUCT INFORMATION

DD862 Electromechanical type long life Induction Energy Meter a single-phase watt-hour meter is induction meter which is applicable to measure the rated frequency 50Hz and power loss in electrified wire netting.The meter has novel design,rational structure and features of large overload,low power loss and long life tec. DD862 Electromechanical type Induction Energy Meter conforms to GB/T17215.311-2008,IEC62052-11-2003 and IEC62053-11-2003 standard in performance.

SPECIFICATIONS

Type	Accuracy (class)	Rated voltage(V)	Rated current(A)	Overload capacity	Starting current	Insulation Performance
DD862-4	2.0	220	1.5(6),2.5(10),5(20),10(40),15(60),20(80),30(100)	400%1b	0.5%1b	AC voltage 2KV for 1 minutes impulse voltage 6 KV
DD862-2			3(6),5(10),2.5(5) 10(20),20(40), 30(60),40(80)	200%1b
DD862a-4			1.5(6),2.5(10),5(20) 10(40),15(60) 20(80),30(100)	400%1b
DD862a-2			3(6),5(10),2.5(5) 10(20),20(40), 30(60),40(80)	200%1b

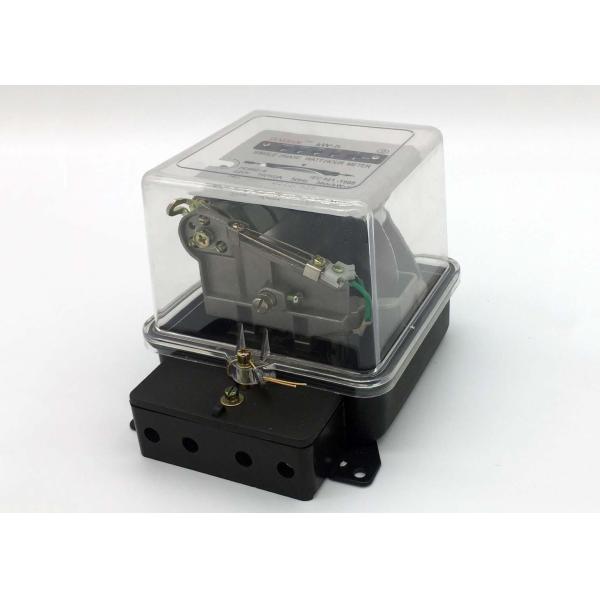

PRODUCT PICTURE

Long Life Induction Energy Meter / Mechanical Kwh Meter Low Power Loss

Packaging & Delivery

Packaging Details Export Carton with Inner Foam Box

Port China Port

Lead Time :7~15DAYS
